T70P DJI Agras
The DJI Agras T70P is a high-capacity, mid-heavy agricultural drone positioned between the T50 and T100. It delivers major payload gains over the T50 while remaining more agile and easier to deploy than the T100. It is ideal for orchards, vineyards, berries, and mid-to-large acreage farms.
High-Capacity, Dual-Battery-Compatible Platform
Aircraft weight
- o52 kg (with DB1580)
- o56 kg (with DB2160)
Max takeoff weight
With DB1580:
- 102–105 kg spraying
- 126 kg spreading
- 115 kg lifting
With DB2160:
- 126–130 kg spraying
- 130 kg spreading
- 118.5 kg lifting
Diagonal wheelbase
2440 mm
The T70P offers a major payload jump over the T50 while staying lighter and more maneuverable than the T100.
70-L High-Efficiency Spraying System
Tank volume: 70 L HDPE
Operating payload: 70 kg
Nozzles: 2 standard or 4 optional mist nozzles
Droplet size: 50–500 μm
Spray width: 4–11 m
Flow rate:
- 30 L/min (2 nozzles)
- 40 L/min (4 nozzles)
This system is ideal for fungicides, insecticides, and foliar applications requiring high throughput and uniform droplet distribution.

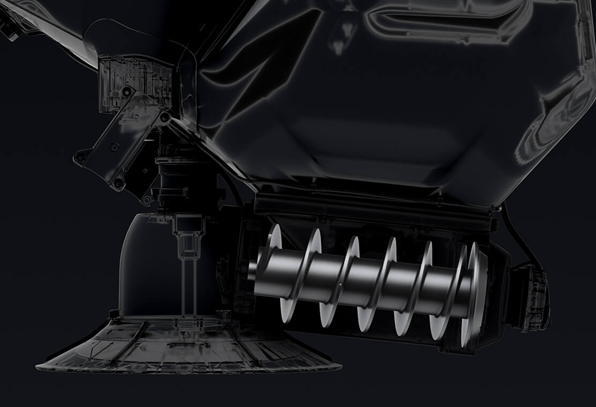

Spreading System 4.0 (100 L)
Tank volume: 100 L
Max internal load: 70 kg
Granule compatibility: 5–10 mm (multiple augers)
Max discharge rate: 400 kg/min
Spread width: 3–10 m
Perfect for fertilizer, seed, feed, and granular pesticides on medium-to-large farms.
Lifting System
Load capacity: 65 kg
Cable length: 10 m (recommended 10–15 m)
Useful for forestry, logistics, and remote material delivery.

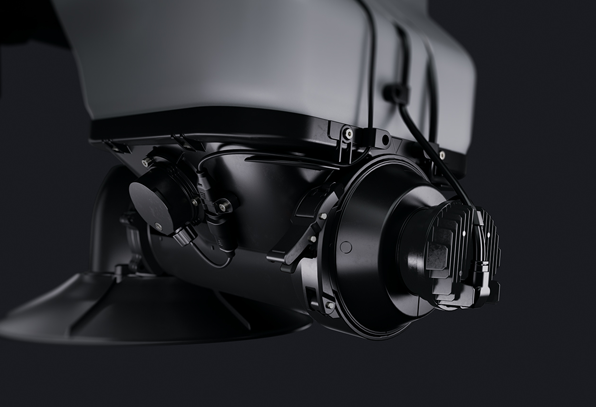

Safety System 3.0 - Radar + Vision Fusion
Millimeter-wave radar: 360° front + 360° rear

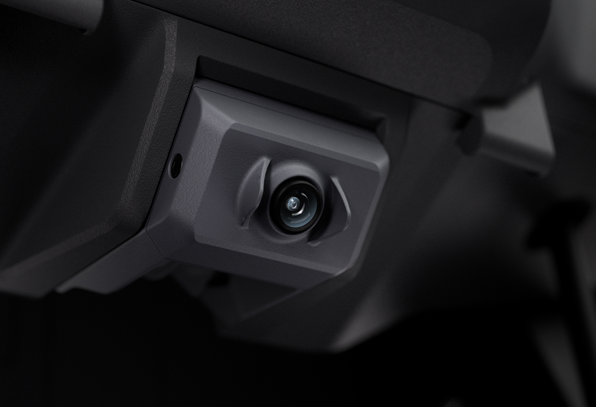

Tri-eye vision system: 90° horizontal, 180° vertical
Obstacle detection range: ≤60 m
Safe avoidance speed: ≤13.8 m/s
Minimum avoidance height: ≥1.5 m
Safe braking distance: 5 m
This gives the T70P strong protection in orchards, vineyards, and uneven terrain.
Precision Positioning (RTK-Enabled)
RTK accuracy: ±10 cm horizontal/vertical
Without RTK: ±0.6 m horizontal, ±0.3 m vertical
Compatible with D-RTK 3 AG for centimeter-level accuracy.
Contact Us For a Request a Quote
Power System & Ultra-Fast Charging
Battery Options
- DB1580: 30,000 mAh, 11.7 kg
- DB2160: 41,000 mAh, 14.7 kg
Charging
D14000iE generator:
- 7–8 min (DB1580)
- 8–9 min (DB2160)
C12000 Smart Charger
same timing
This enables continuous operation with a 2-battery rotation.
Ideal Use Cases
Vineyards (Kelowna, Naramata, Langley)
Orchards (apples, cherries, pears)
Berries (blueberries, raspberries)
Mid-acreage broadacre crops
Fertilizer and seed spreading
Forestry and lifting operations
The T70P is the “power-to-weight sweet spot” – significantly more capable than the T50, but easier to deploy and transport than the T100.
